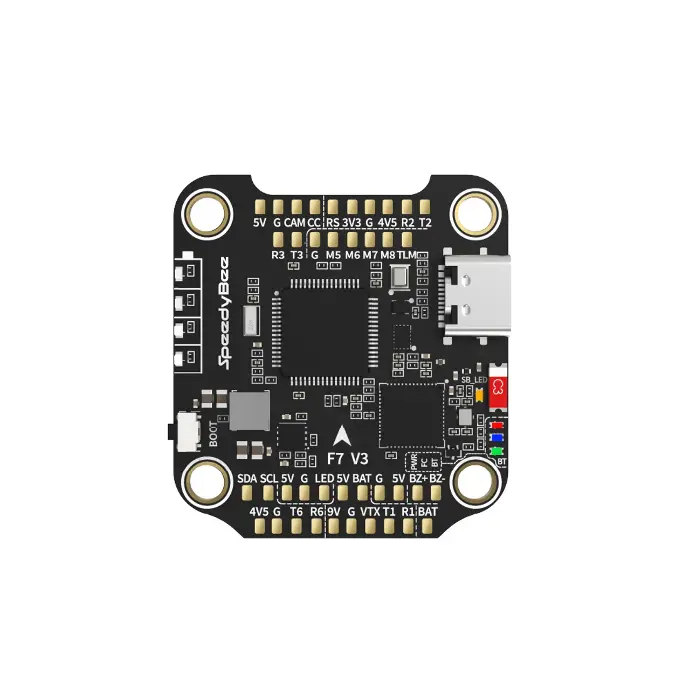

SpeedyBee F7 V3 Flight Controller
Discover the innovations brought by the SpeedyBee F7 V3 Flight Controller.
Elevate your drone’s capabilities to the next level with the SpeedyBee F7 V3 Flight Controller, meticulously designed for the most demanding pilots and intricate builds. This state-of-the-art controller brings forth the ultimate in drone technology, combining precision, versatility, and connectivity for an unmatched flying experience.
SpeedyBee F7 V3 Flight Controller - Key features
- Powerful STM32F722 Processor: At the core of the F7 V3 is the STM32F722 processor, which provides rapid processing power to handle complex calculations without lag, enhancing the drone’s response times and flight dynamics.
- Integrated Bluetooth: Setting this flight controller apart is its integrated Bluetooth module, allowing for easy and quick configuration changes directly from the SpeedyBee App—no PC required. This feature simplifies making adjustments on the field, providing more time to fly and less time tinkering.
- Versatile Connectivity: With support for up to 6 UARTs, pilots can connect a multitude of devices simultaneously, from GPS modules to digital VTXs. The F7 V3 is also fully compatible with both DJI and analog systems, giving pilots the freedom to choose their preferred video transmission technology.
- Advanced BlackBox: You gain access to a massive 500 MB memory for recording flight logs. You can store up to 100 complete flight logs in it. But if you prefer, you can store your top-secret data there. .
- Enhanced VTX Power Control: Manage your VTX power directly from the flight controller for improved efficiency and safety. This integration reduces the risk of interference and power-related issues, which is crucial during competitive races and complex maneuvers.
- Advanced Power Management: The F7 V3 features a dedicated 9V BEC designed to provide a stable and reliable power supply to the camera and VTX, ensuring optimal performance and protection against voltage spikes.
- Robust Build Quality: Designed with the needs of competitive pilots in mind, the F7 V3 boasts a layout that is not only practical but also resilient against the vibrations and electrical noise common in high-intensity flights.
Ultimate Control and Customization
The SpeedyBee F7 V3 is not just about powerful hardware; it’s about giving pilots the control they need to customize their drones for any scenario, from cinematic shots to race-winning laps. With its extensive tuning capabilities and robust build, the F7 V3 is the ideal choice for builders looking to push the boundaries of what’s possible with FPV drone technology.
Whether you’re gearing up for a race or trying to capture the perfect aerial shot, the SpeedyBee F7 V3 Flight Controller ensures your drone is equipped with the precision and power to soar above the rest. Get ready to experience flight control like never before – efficient, reliable, and astonishingly advanced.
Soldering connection diagram
Connection diagram using connectors
Output for 8 motors, perfect for your X8 Cinelifter!
There is no better flight controller for an X8 drone. Forget about searching through the massive drone structure just to plug in a USB cable. Simply take out your phone and configure this X8 monster wirelessly, just before capturing that perfect shot for an ad. Professional FPV pilots don’t have time to waste.
SpeedyBee F7 V3 Flight Controller - Specification
Microcontroller | STM32F722 |
Gyroscope | BMI270 |
USB | USB type C |
Barometer | BMP280 |
OSD Module | AT7456E |
Bluetooth BLE | Supported. FC configuration, combo built-in into single circuit: Wi-Fi 2.4 GHz with Bluetooth |
Wireless FC software update | Supported. Open MENU > FC Firmware Flasher |
BlackBox log download / analysis | Supported. Open MENU > Blackbox Analyzer |
DJI Air Unit connection | Two methods supported: 6-pin connector or direct soldering |
6-pin connector DJI Air Unit | Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no cable replacement required. |
FLASH memory (BlackBox) | 500MB |
Pad Camera Control BetaFlight | Yes (pad CC on the top of FC) |
Input voltage | 3S – 6S Lipo |
5V output | 10 groups of 5V outputs, with three pads for +5V and one pad for BZ+ (intended for the buzzer) on the top side, and six +5V outputs, including connectors, on the bottom side. Total load up to 2A. |
| 9V output | 2 groups of 9V outputs, with one pad for +9V on the top side and a built-in connector on the bottom side. Total load up to 4A. |
3.3V Output | Supported. Designed for receivers that accept a 3.3V input. Load up to 500mA. |
4.5V Output | Supported. Designed for GPS modules and receivers, even when the FC is powered via the USB connector. Load up to 1A.
|
ESC pads | M1 – M4 on the bottom and M5 – M8 on the top.
|
UART | 5 sets (UART1, UART2, UART3, UART4 - telemetry ESC, UART6) |
UART telemetry ESC | R4(UART4) |
I2C interface | Supported. SDA and SCL pads on the top side. Used for the magnetometer, sonar, etc. |
LED pad | Used for controlling WS2812 LEDs via Betaflight software.
|
| Buzzer | BZ+ and BZ- pads used for a 5V buzzer.
|
BOOT button | Supported. [A] Pressing and holding the BOOT button while powering the flight controller will force the FC into DFU mode, which is used for firmware updates when the flight controller becomes permanently locked. . [B] When the flight controller is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to the LED1-LED4 connectors on the bottom side. By default, a short press switches between LED lighting modes. A long press toggles between SpeedyBee-LED and BF-LED control. BF-LED control is done through Betaflight software and applies to all LED strips connected to the LED1-LED4 connectors. |
RSSI input | Supported. RS pad on the top side. |
SmartPort | Supported |
Supported software | BetaFlight (default), INAV |
Software name | SPEEDYBEEF7V3 |
Mounting holes | 30.5mm x 30.5mm (mounting hole 4mm) |
Dimensions | 41mm x 38mm x 8.1mm |
| Weight | 10.7g |
SpeedyBee F7 V3 Flight Controller - Package includes
- 1x FC SpeedyBee F7 V3 (1)
- 1x DJI 6-pin cable 80mm (2)
- 1x SH cable 1.0mm for FC-ESC connection 8-pin 25mm (3)
- 4x silicone dampers M3*8mm (4)
- 1x FPV camera cable 4-pin SH1.0 3-pin and 2-pin JST1.25 30mm (A)
- 1x FPV camera cable 4-pin SH1.0 to 3-pin and 2-pin JST1.25 60mm (B)
- 1x FPV camera cable 4-pin SH1.0 to 4-pin JST1.25 60mm (C)
- 1x RC receiver cable 4-pin SH1.0 w/o connector at the end 100mm (D)
- 1x analog VTX cable 4-pin SH1.0 to 4-pin SH1.0 (E)
- 1x GPS module cable 6-pin SH1.0 w/o connector at the end 100mm (F)
- 1x 6-pin SH1.0 connector (G)
