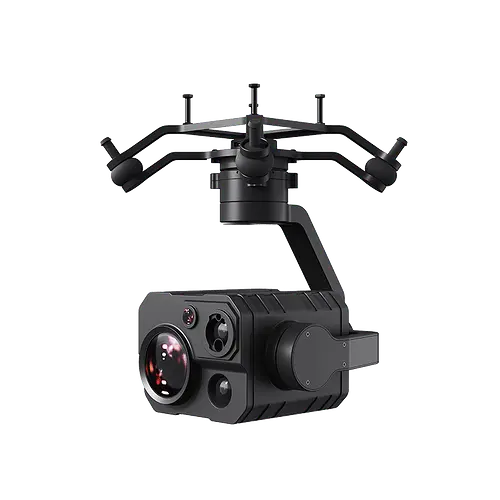

Camera SIYI ZT30

Camera SIYI ZT30 industry leader

Zoom, thermal imaging, wide-angle camera and laser rangefinder working reliably in one device. This makes it possible to detect heat sources while measuring distances and capturing clear images. Sensor equipped with four sensors with excellent performance.

SIYI ZT30 four-sensor optical pod carries a 640 x 512 resolution thermal imaging sensor of 19 mm focal length and 30 fps frame rate. Vision is wide and far. The video is smooth and clear. Quick and accurate reactions can be taken as long as an abnormal heat source is detected, where temperature can be measured by touching on infrared images.

SIYI ZT30 Optical Pod Camera provides powerful compatibility to contribute to smart robotics ecology in all dimensions. They can be controlled through traditional S.Bus signal by switches and dials, through Ethernet by touchscreen or by UDP based on SIYI SDK, or through UART by SIYI SDK or by popular open-source protocols like Ardupilot driver and Mavlink.

SENSORS that surprise you!

SIYI ZT30 Electro-optical Pod a hybrid-sensor solution born to lead the industry. Zoom cameras, thermal imaging cameras, laser rangefinders, and wide-angle cameras collaborate efficiently to detect heat sources while measuring the distance to targets, capturing clearer pictures, and having a broad view.

Thermal imaging

The thermal imaging sensor has a resolution of 640×512 Px, a focal length of 19 mm and a frame rate of 30 frames per second. When an abnormal heat source is detected, a quick and accurate alert response is also possible.

High-precision laser range finder

The range of the ZT30 optical Pod is 1200m and the measurement accuracy is 0.1m. Accurate coordinates can be obtained in real-time, even in high-risk operational Areas.

ZOOM

The ZT30 is equipped with a 4K Sony 1/2.7″ image sensor, which gives 180x hybrid zoom and 30x optical zoom. In addition, a 2K wide-angle camera is built in. This provides a clear, wide view and the ability to take panoramic photos. Photos taken with the ZT30 receive GPS location information and a time stamp.

Unlimited axis rotation

The ZT30 rotates infinitely. When mounted under drones or VTOL aircraft, the ZT30 provides 360° visibility. The SIYI quick release is compatible with the ZR30, so you can change cameras as needed.

Gimbal control

SIYI Optical Pods offer broad compatibility with any unmanned platform. Communication can be via SBUS, Ethernet, UDP and UART (with SIYI SDK) or popular open source protocols such as those used by Ardupilot COMUNITY or Mavlink. (Mavlink control is under development and will be supported in the future).

Camera SIYI ZT30 features

• Infrared zoom: the thermal imaging camera supports 2x digital zoom and provides highly detailed images.
• Synchronized zoom: a zoom camera and a thermal imaging camera can synchronously zoom in and out in the same perspective.
• Split video screen: the screen can be split to display images from any two sensors. A third sensor can be simultaneously displayed in an additional window.
• Starlight night vision: in low-light conditions, the Starlight CMOS sensor provides a clear and bright image.
• Point-to-Focus: to focus on a specific part of the screen, select the desired point by pointing with your finger.
• Focus tracking: even when scaling the image, the camera maintains focus and records smooth videos.
• HDR: precise capture of light and shadow details > true colors and natural brightness.

Specification of the Camera SIYI ZT30

Overall

• Video Output port: Ethernet
• Control Signal Input Port: S.BUS, UART, UDP (Ethernet)
• High-accuracy 3-axis stabilization: yaw, pitch, roll
• Working voltage: 11-25,2V
• Power Consumption: average 9W, summit 20W
• Waterproof Level: IP4X
• Working temperature: -10~50°C
• Dimension: 182 x 140 x 134,5 mm (incl. quick release anti-Vibration claw)
• Weight: 870 g (incl. quick release anti-Vibration claw)
• Dimension: 141 x 140 x 42,5 mm
• Weight: 104 g
• Video bit rate: 15 Mbps (H.265 codec)
• File storage format: FAT32
• Image format: JPG
• Video format: MP4
• MicroSD cards supported: MicroSD Class10, 128 GB max.
• Shooting mode: single
• Measurement mode: evaluation measurement


Gimbal

• Angular Vibration range: +/- 0,01°
• Controllable pitch angle: -90° to +25°
• Controllable yaw angle: limitless
• Roll angle: -45° to 45° ​

Zoom camera

• Lens: 30x optical zoom (180x hybrid zoom)
• Focal length: 4.8% to 149 mm (+/-5%)
• Image sensor: 1/2.7″, 8 MP effective resolution
• Aperture: F1.3 to F4.8 (+/-5%)
• FOV: 62° (H)
• Video recording resolution: 4K (4096×2160) @30fps | 2K (2560×1440) @30fps | 1080p (1920×1080) @30fps | 720p (1280×720) @30fps
• Image resolution: 4K (4096×2160)

Thermal imaging camera

• Resolution: 640×512
• Zoom cyfrowy: 2x
• Lens ( Focal length: 19 mm; Aperture: F1.1; Fixed focus; Atermization)
• Wavelength range: 8~14 um
• Temperature measurement accuracy: +/-2°C (-20 ~ +150°C) | +/-3°C (0 ~ 550°C)
• Temperature measurement mode: Spot measurement | Full-screen measurement

Wide angle camera

• Image sensor: 1/2.8″, 4 MP effective resolution
• Focal length equivalent: 21 mm
• FOV: 88° (H)
• Video recording resolution: 2K (2560×1440) @30fps
• Image resolution: 2K (2560×1440)

Range finder

• Range: 5~1200 m
• Wavelength range: 900 ~ 908 nm
• Resolution: 0,1 m
• Ranging accuracy: +/- 1 m (3~100 m) | +/- 1 +Lx0,25% m, L=length (100~600m)
• Laser pulse frequency: 3 Hz
• Max. Laser power: 5 mW
