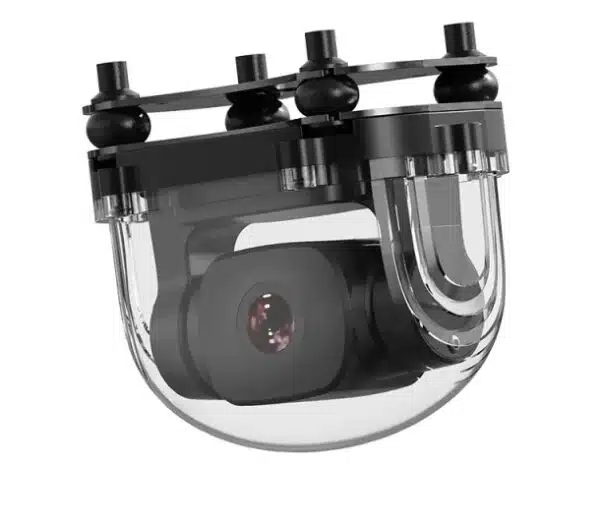

Camera SIYI A2 mini
A2 Mini camera, the smaller brother of the A8 Mini!
The A2 Mini camera, the smaller brother of the A8 Mini, impresses with a 1/2.7-inch matrix and high IP65 protection class. This compact camera is the perfect solution for capturing beautiful landscapes in more difficult conditions while providing reliable protection from the elements.
Ultra-Wide Angle FOV Distortion Correction
A2 mini comes with a horizontal 160-degree ultra-wide-angel leans, providing an extensive view of the operation field that operator has clear sight during flight without adjusting drone attitude too much. Quick decisions can be made to ensure security to drone operation.
Powerful distortion correction algorithm makes A2 mini's image smooth and natural.
*SIYI FPV app is suggested for checking FPV image and SDK is available for developers and manufacturers.
IP65 protection class ideal for industry
Drone operations in agriculture and mines may often be associated with moisture, sprays, dust, or floating dust. Therefore, the outdoor FPV camera should have excellent water resistance. The A2 mini camera is designed with IP65 protection, providing effective protection against water, pesticides, dust, and dust, which makes it easy to clean and reliably keep the device in perfect condition.
The A2 mini automatically operates in reverse mode, which allows the camera to be activated when it is mounted upside down, without the need for software changes. This is useful when mounting the camera on UGVs, USVs, or walking robots.
Specification of the Camera SIYI A2 mini
| Imager Sensor | 1/2.7 Inch, 2 MP |
| Video Output Port | Ethernet |
Control Signal Input Port | S.Bus; PWM; Ethernet UDP |
Gimbal | Pitch (-90°:25°) |
Working Voltage | 12 V |
Power Consumption | Average: 2W; Summit: 12W |
Working Temperature | -10° ~ 50°C |
Dimension | 65x43x50 mm |
Weight | 85 g |
What's included in the Camera SIYI A2 mini
- 1x Camera SIYI A2 mini
