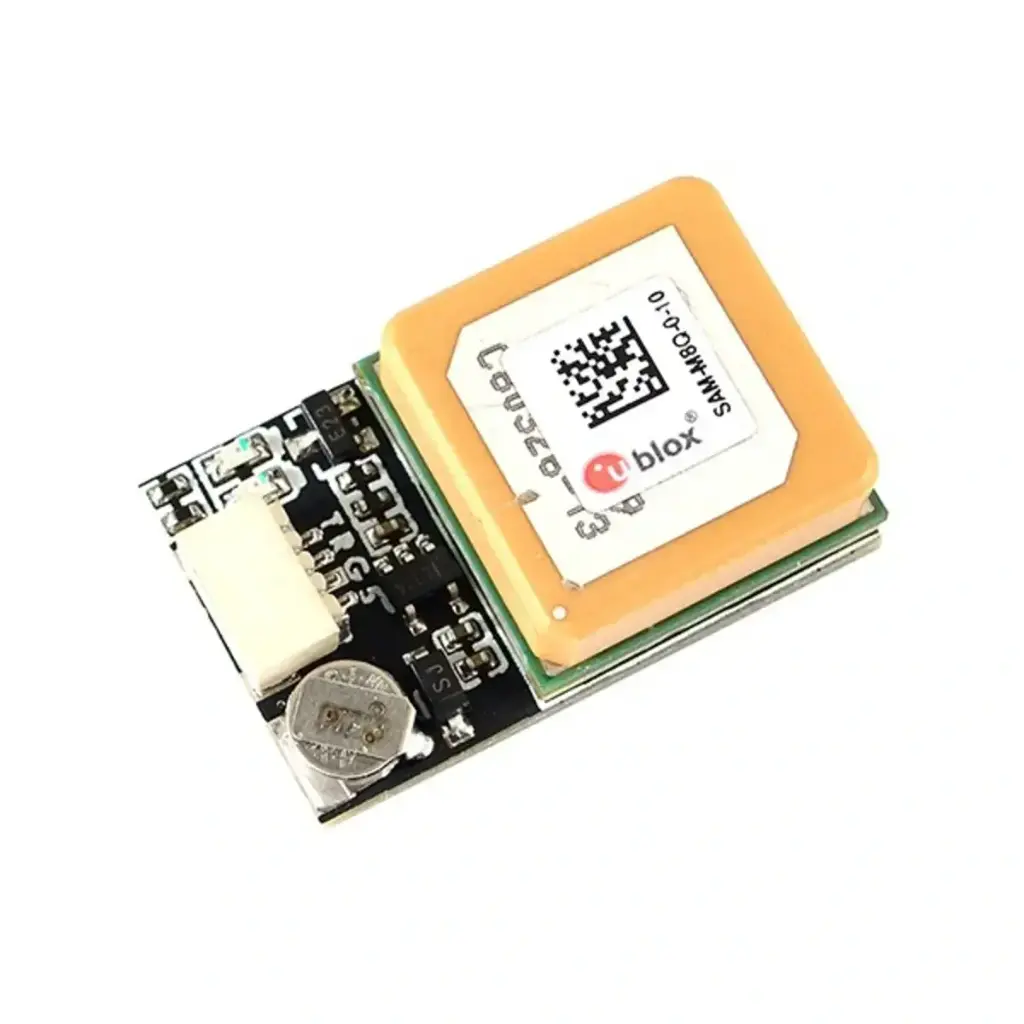

GNSS Module SAM-M8Q excellence in minature size!
The SAM-M8Q is a highly accurate, miniature board with a 72-channel GNSS receiver capable of receiving signals from GPS, GLONASS, BeiDou and Galileo. It communicates via SPI / I2C or UART. It has a Qwiic connector. There is a rechargeable RTC battery on the board to reduce time-to-first-fix. The u-blox module can be configured by a program called u-center. It has the ability to configure various functions, such as baud rate, geofencing, update rates, spoofing detection, external interrupts, SBAS/D-GPS, etc. The power supply voltage is 3.3 V.
Maximum performance in harsh conditions GNSS SAM-M8Q
The SAM-M8Q features low power consumption, a simple interface, and advanced interference suppression to ensure maximum performance even in non-GNSS environments.
The 15 x 15 mm patch antenna provides the best compromise between the performance of a right-hand circularly polarized (RHCP) antenna and a small size that can be integrated into any design. The omni-directional radiation pattern increases the device's installation flexibility. The SAM-M8Q ublox module has an additional front-end LNA for optimized performance and a front-end SAW filter for increased immunity to interference.
The SAM-M8Q module is designed for industrial and consumer applications that require small, cost-effective and ready-to-use GNSS solutions. The SAM-M8Q is based on the u-blox M8 FW3 engine with state-of-the-art performance and additional features not available in other antenna modules on the market. It also provides message integrity protection, geofencing, spoofing detection and odometer functions.
Features GNSS Module SAM-M8Q
- 72-channel M8 engine GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, Galileo E1B/C
- On-board Ultra low noise 3.3V voltage regulator and RF filter for noise blocking
- Features an additional front-end LNA for optimized performance and a front-end SAW filter for increased jamming immunity
- Uart interface (Tx,Rx)
- battery for hot start of the module
- power LED (Red) & time pulse LED (Blue)
- cold start - 26 s assisted cold start - 2 shot start - 1 s
- sensitivity tracking and Navigation: -165 dBmreacquisition: -158 dBm cold start: -146 dBm hot start: -155 dBm
- can be installed with double-sided tape
- Supported by INAV / Betaflight / Ardupilot, etc.
Guidelines GNSS Module SAM-M8Q
- GPS, GLONASS, SBAS, QZSS are enabled by default
- u-blox M8Q series has no external flash memory
- Blue PPS LED blinking(1Hz) means 3D fixed
- update rate 1Hz & baudrate 9600 default
- Baud 9600~115200 supported by INAV
- update rate 5Hz with INAV UBLOX Protocol
- update rate 10Hz with INAV UBLOX7 Protocol
- BF doesn’t support GPS position hold and RTH, GPS Rescue mode is supported by BF3.5 or last.
- The scratches on ceramic antenna are the result of tuning the antenna by ublox. Placing small nicks in the centre of the long edges, or corners, brings them into spec.
Specification of the GNSS Module SAM-M8Q
VOLTAGE REGULATOR | 3,3 V o ultra niskim szumie oraz filtr RF dla blokowania szumu |
MAXIMUM NAVIGATION DATA UPDATE RATE | pojedynczy GNSS do 18 Hz 2 równoległe GNSS (GPS & GLONASS) do 10 Hz |
HORIZONTAL POSITIONING ACCURACY (GPS & GLONASS) | 2,5 m |
VELOCITY ACCURACY | 0,05 m/s |
INPUT VOLTAGE RANGE | 4-5,5 V |
POWER CONSUMPTION | 40 mA |
DATA TRANSMISSION RATE | 9600 domyślnie |
DIMENSIONS | 26 x 16 x 7,5 mm |
WEIGHT | 7 g |
What's included in the GNSS Module SAM-M8Q
- GNSS module SAM-M8Q
- SH1.0-4P 15cm silicone cable
- Transparent PVC Heat-shrink tube
