Mateksys Flight Controller H743-MINI - small size, big possibilities!
The Matek H743-MINI flight controller supports software from BetaFlight, ArduPilot and Inav. It has two video inputs (switchable) and a wide input voltage range of 6.3V to 36V DC (2S to 8S LiPo). This flight controller can be used for four-engine multi-rotors.

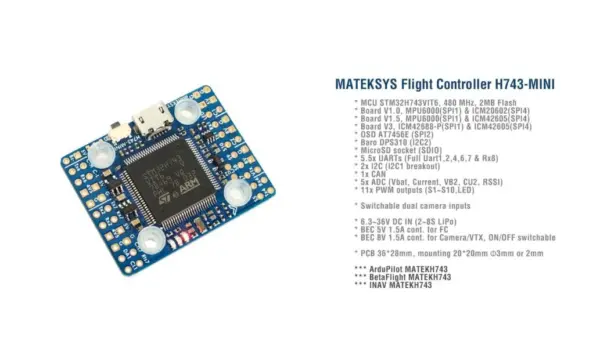

Specification of the Flight Controller H743-MINI
PROCESSOR | STM32H743VIT6 |
FREQUENCY | 480MHz |
RAM | 1MB |
FLASH | 2MB |
V1.0 IMU | PU6000 (SPI 1) & ICM20602 (SPI4) |
V1.5 IMU | MPU6000 (SPI 1) & ICM42605 (SPI4) |
V3 IMU | ICM42688-P (SPI 1) & ICM42605 (SPI4) |
BAROMETER | Infineon DPS310(12C2) |
OSD | AT7456E (SPI2) |
BLACK BOX | slot karty MicroSD (SDIO) |
FC Flight Controller Software Firmware
- ArduPilot(ChiBiOS): MATEKH743
- BetaFlight: MATEKH743
- INAV: MATEKH743

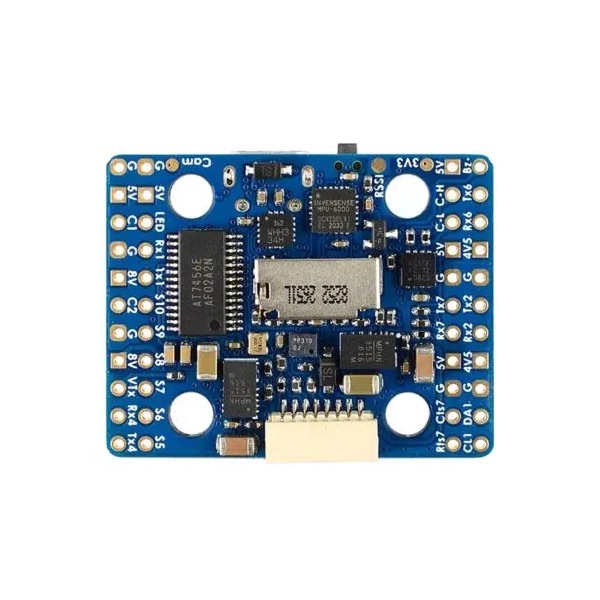

INPUTS/OUTPUTS
- 5.5x UART (1,2,4,6,7, Rx8)
- 11x PWM output
- 2x I2C (I2C1/DA1 CL1 pady, no I2C2 breakout)
- 1x CAN (C-H, C-L pady)
- 5x ADC (VBAT, Current, RSSI, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x input for JST-SH1.0_8pin plug (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- Dual Camera Inputs Switch
- 8V ON/OFF switch
POWER

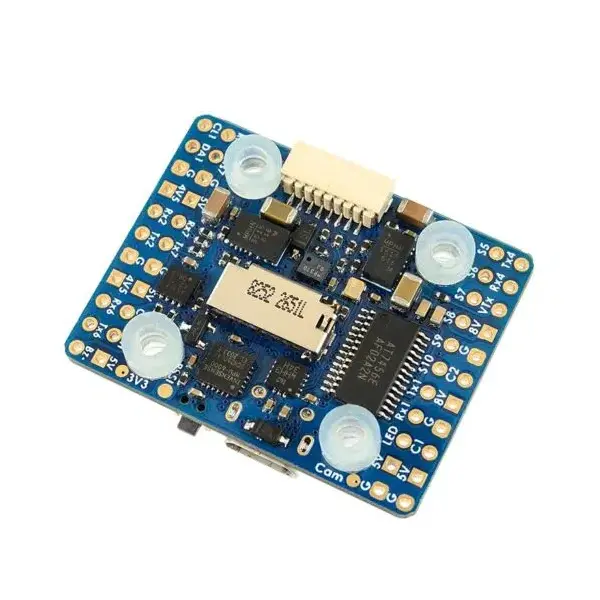

NAPIĘCIE BATERII | 6.3~36V (2-8S LiPo) |
BEC | 5V 1.5A stałe (MAX.2A) |
BEC | 8V 1.5A stałe (MAX.2A) 8V stabilne gdy Vbat>=10V, 8Vwypuszcza 80% of Vbat gdy Vbat< 10V |
LDO 3.3V | 200mA |
DRUGIE WEJŚCIE NA BATERIE | pad wspiera maksymalnie 69 V |
POBÓR MOCY USB | 200mA@SV with Betaflight, lSOmA@SV with ArduPilot |
MOUNTING | 20x 20mm/3mm z silikonową tulejką 20 x 20mm/2mm z silikonową i mosiężną tulejką |

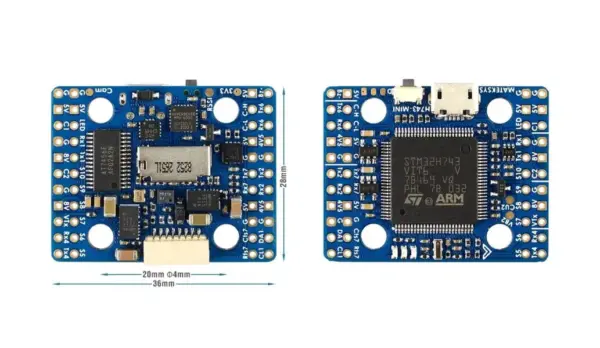

DIMENSIONS | 36x 28 x6,5 mm |
WEIGHT | 7g |
What's included in the Flight Controller H743-MINI
- 1x H743-MINI
- 6x Silicon grommets M4 to M3
- 6x Brass grommets M3 to M2
- 1x JST-SH1.0_8pin cable, 5cm
- 2x JST-SH1.0_8pin connectors
