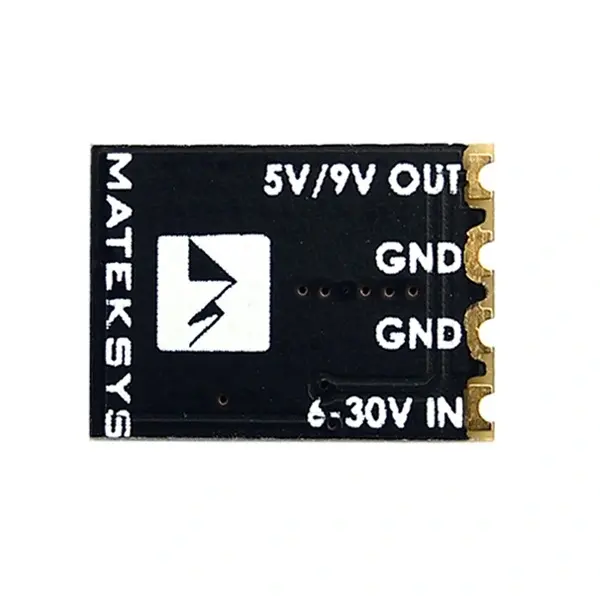

Micro BEC6S 6-30V to 5V/9V-ADJ (3PCS) provides reliable power
Wide input range from 6V to 30V and adjustable output (5V, 9V - simply bridge the dedicated solder pads). This compact regulator, with a 100% duty cycle, offers safety features such as overcurrent protection, thermal shutdown, and short-circuit tolerance.
Compact design and low weight!
Suitable for a variety of configurations, its compact design (10x14x3 mm) and low weight (1 g) make it an efficient energy management solution.
Specification of the Micro BEC6S 6-30V to 5V/9V-ADJ (3PCS)
- Wide 6V to 30V Operating Input Range
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
- VOut 5V or 9V Adj. Default is 5V.
- Regulacja obciążenia napięcia wyjściowego 2%,
- Prąd w stanie gotowości <5mA,
- Maksymalny cykl pracy: 95%,
- Standby current: <5mA
- Zabezpieczenie nadprądowe i hiccup protection,
- Tolerancja zwarcia na wyjściu 5 sekund/minutę,
- Maximum Duty Cycle: 95%
- OCP Protection and Hiccup
- Masa 1g
What's included in the Micro BEC6S 6-30V to 5V/9V-ADJ (3PCS)
- 3x MICRO BEC 6-30V 6S
