Digital AirSpeed sensor ASPD-DLVR
Digital AirSpeed Sensor ASPD-DLVR – Precision AirSpeed Measurement for UAVs
Currently the best supported speed sensors by ArduPilot.
Key Features of the Digital AirSpeed Sensor ASPD-DLVR
- CAN node ArduPilot AP_Periph F303,
- DLVR-L10D firmy All Sensors, industrial temperature range,
- CAN and I2C interface,
- Typical platforms: Fixed-Wing, QuadPlane, VTOL,
- CAN JST-GH connector, UAVCAN protocol,

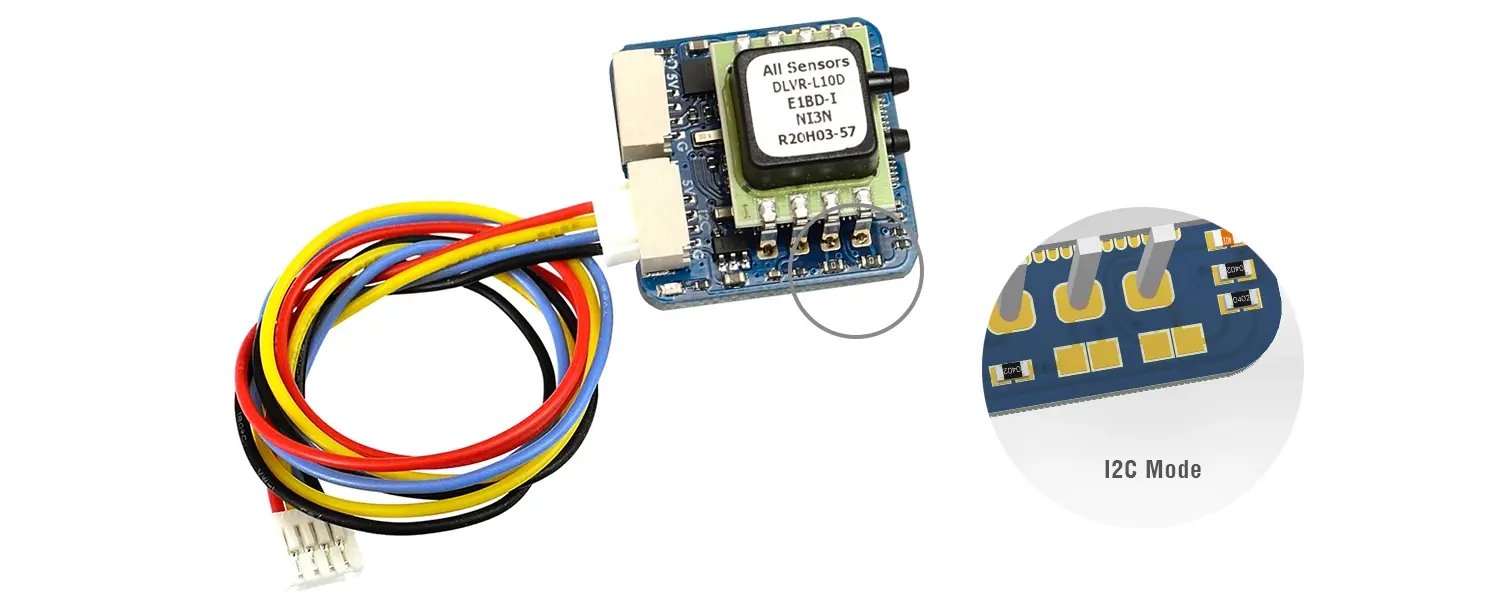

- I2C connector JST-GH, DLVR-L10D I2C mode (I2C address 0x28),
- UART1, software update,
- UART2, spare for external GPS,
- UART3, MSP protocol (to be supported),
- 3.3 V power LED, red,
- CAN bootloader LED (blue)
- Fast blinking: No communication between the CAN node and flight controllers (bootloader AP_Periph mode),
- Slow blinking: Successful communication established between the CAN node and flight controllers.
![]()
Specifications – Digital AirSpeed Sensor ASPD-DLVR
Input Voltage Range | 4.5 ~ 5.5 V |
Current Consumption | 60 mA |
Operating Temperature | od -20°C do 85°C |
Pressure Range | 2500 Pa (± 10 w H2O) |
Maximum Pressure | 75 kPa |
Speed Range | ±250 km/h |

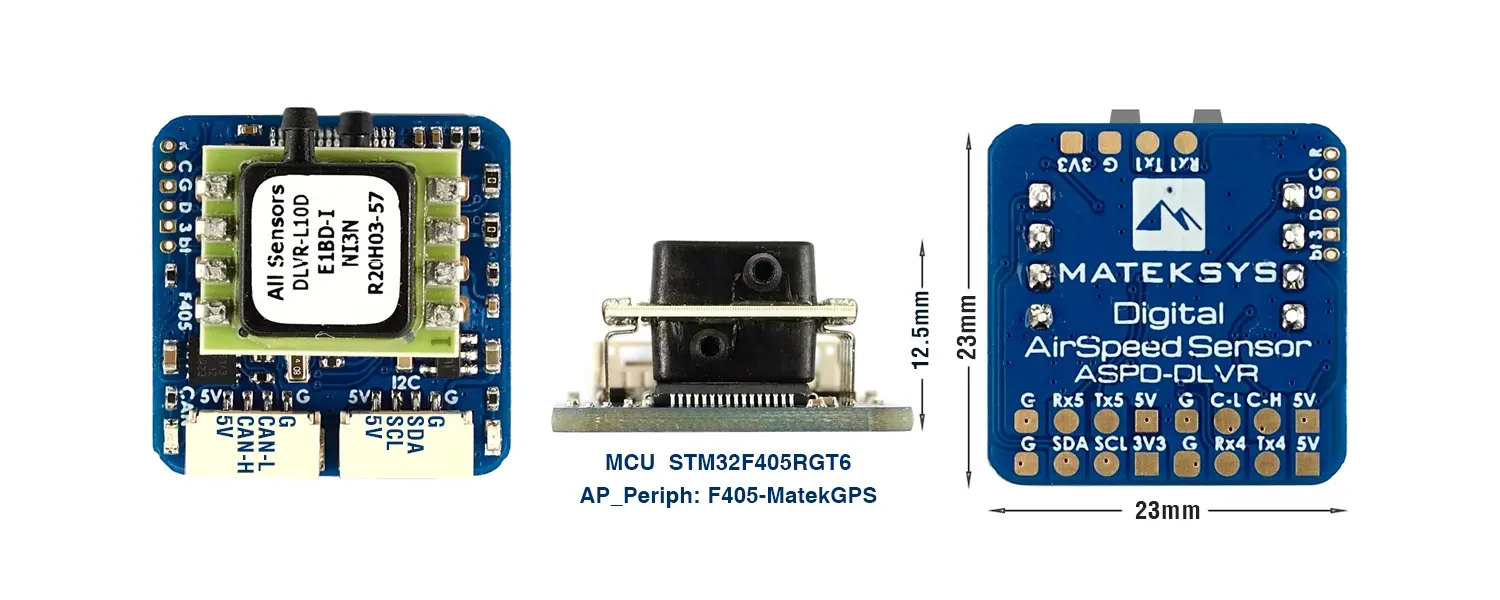

| Dimensions | 23mm*23mm*12.5mm (wersja F405) |
Weight | 4g |
Wiring and AP Parameters
Connection via CAN
ASPD-DLVR | Flight controller |
5V | 5V |
C-H | CAN High |
C-L | CAN Low |
G | GND |
CAN_D1_PROTOCOL | 1 |
CAN_P1_DRIVER | 1 |
ARSPD_TYPE | 8 (UAVCAN) |
ARSPD_USE | 1 |
Mission Planner-> Initial Setup-> Optional Hardware-> UAVCAN-> SLCan Mode CAN1 -> Parameters -> ARSP_TYPE | 9 (DLVR-10in) Write and reboot |
Connection via I2C
ASPD-DLVR | Flight controller |
5V | 5V |
SCL | SCL |
SDA | SDA |
G | GND |
ARSPD_PIN | 65 |
ARSPD_TYPE | 9 (I2C-DLVR-10in) |
ARSPD_USE | 1 |

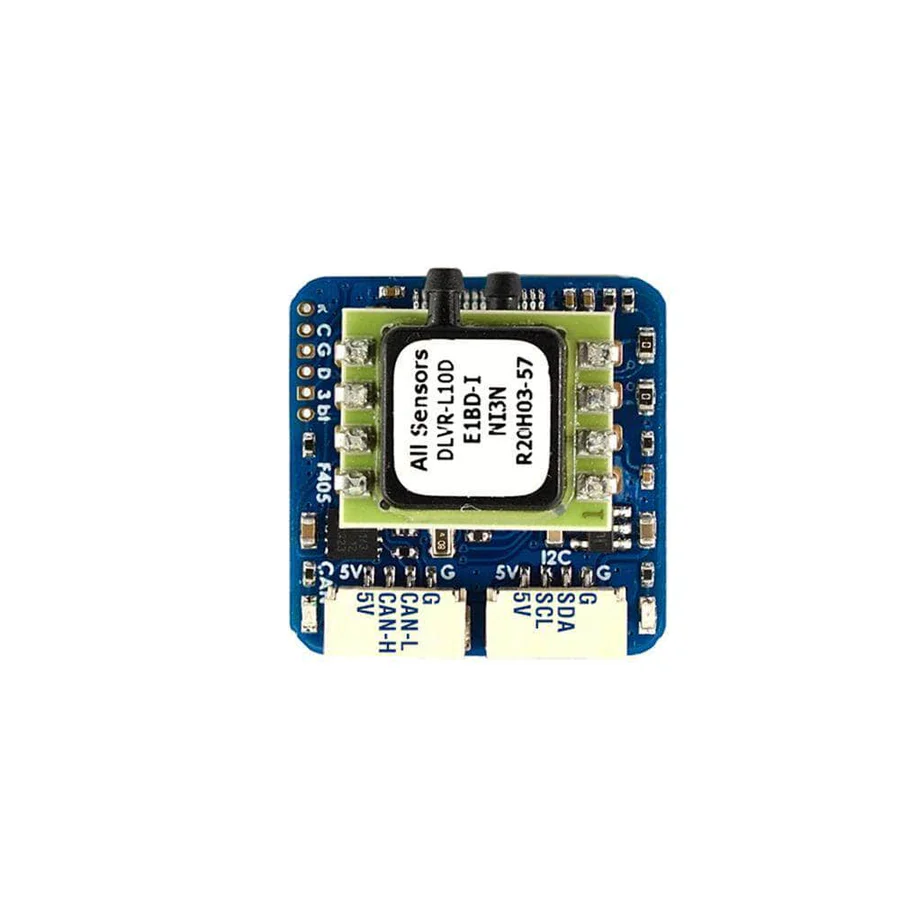

Pinout and Solder Pads
CAN
GH-4P Pin | Signal | Cable color |
5V | input 4~6 V | red |
C-H | CAN high | yellow |
C-L | CAN low | blue |
G | GND | black |
I2C
GH-4P Pin | Signal | Cable color |
5V | wejście 4.5~5.5 V | red |
SCL | I2C-SCL | yellow |
SDA | I2C-SDA | blue |
G | GND | black |

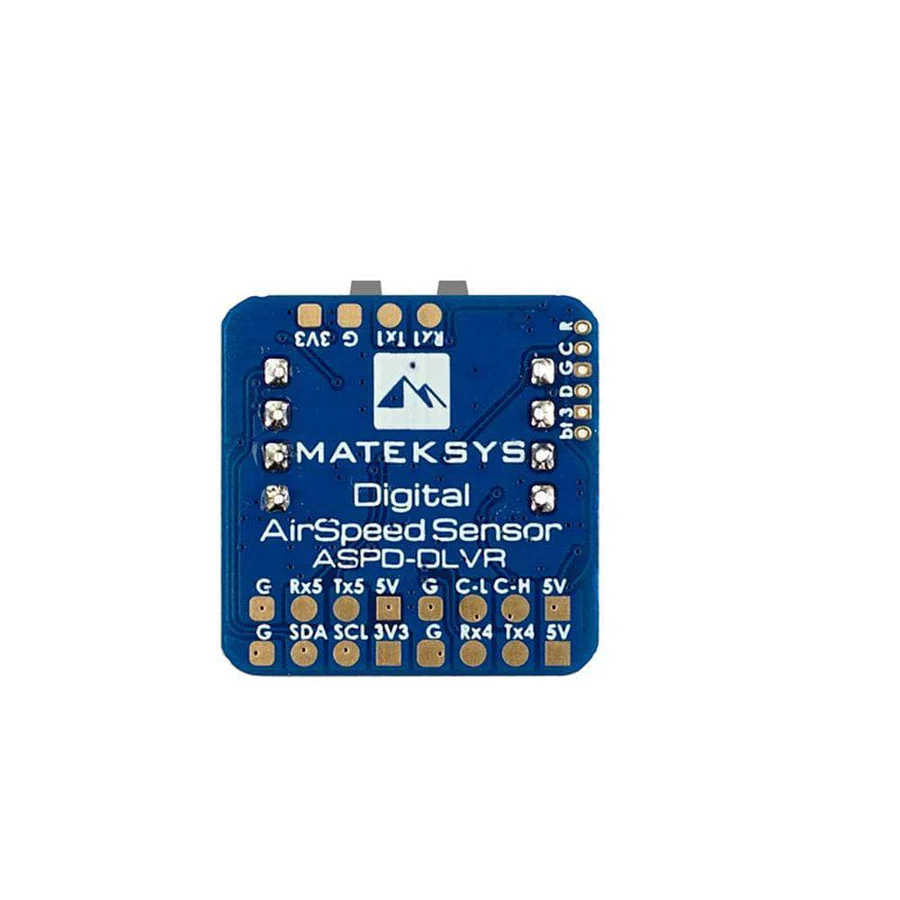

Dedicated solder pads
Pole | Signal | Pole | Signal |
T1 | UART1-TX | Rx4 | UART4-RX |
R1 | UART1-RX | Tx5 | UART5-TX |
Tx1 | UART1-TX | Rx5 | UART5-RX |
Rx1 | UART1-RX | bt | pin Boot |
Tx2 | UART2-TX | 3v3 | wbudowane wyjście LDO |
Rx2 | UART2-RX | D | SWDIO |
Tx3 | UART3-TX | G | GND |
Rx3 | UART3-RX | C | SWCLK |
Tx4 | UART4-TX | RST | NRST |
What’s Included in the Digital AirSpeed Sensor ASPD-DLVR Set?

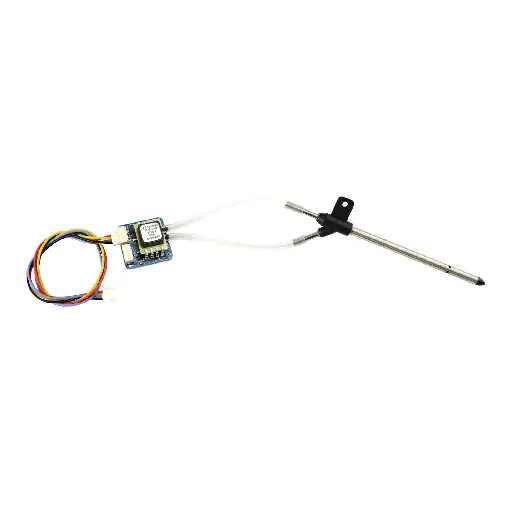

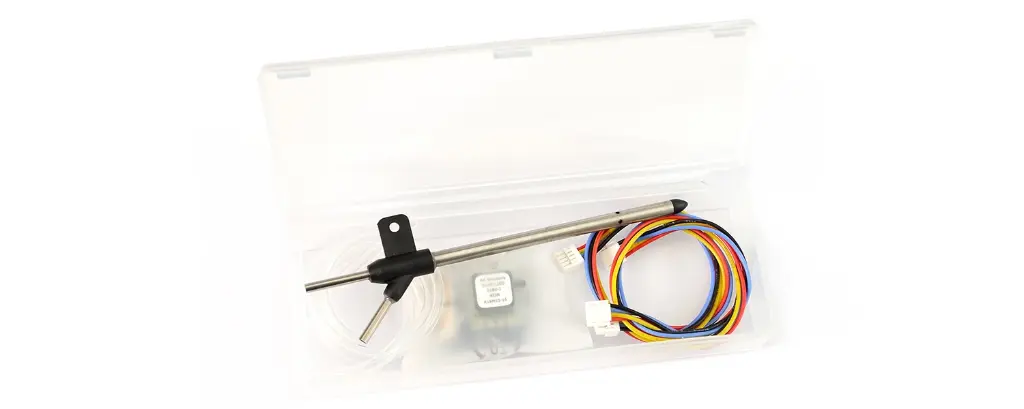

- 1x Digital AirSpeed Sensor ASPD-DLVR
- 2x 4-pin JST-GH to 4-pin JST-GH silicone-insulated cables (20 cm each)
- 1x Pitot tube
- Transparent silicone tube (40 cm)
