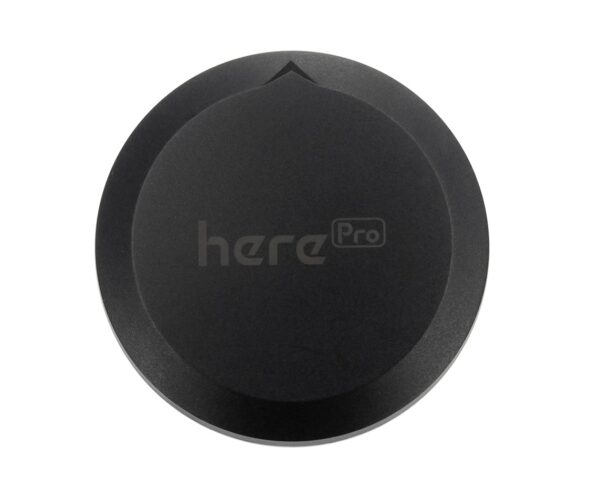

HerePro

HerePro is a professional High Precision Multi-band RTK Navigation module

HerePro is a professional High Precision Multi-band RTK Navigation module. It supports various GNSS options such as BeiDou, Galileo, GLONASS, GPS, and QZSS. Connecting 2 HerePro modules, as base and rover respectively, can complete a precise multi-band multi-GNSS RTK system. The HerePro rover and base are identical in both software and hardware. The parameter setting is the only distinction.

HerePro uses multi-frequency DGNSS signals with advanced algorithms to converge on an RTK Fix in seconds, achieving more reliable centimeter-level positioning.

WHAT'S NEW?

• Equipped with u-blox F9P, a professional high-precision Multi-band RTK navigation module.
• Powerful processing performance provided by built-in STM32H753 chip. It offers real-time processing and data optimization, and Unmanned Industry standard AP_Periph Firmware.
• Supports over CAN or USB firmware updates.
• The tailor-made multi-band antenna from Taoglass supports L1, L2, and E5 frequencies. It features high gain, high sensitivity, and high stability.
• HerePro base supports both fixed and moving base mode, selectable for different scenarios to maximize performance.
• HerePro is a base and rover 2-in-1. Functionality switching can be easily done by parameter settings.
• HerePro uses multi-frequency DGNSS signals with advanced algorithms allowing fast convergence to an RTK Fix, achieving more reliable and stable centimeter-level positioning.
• HerePro module is 15 x 78mm and 101g.
• 6 – 40V dual and wide range input. Compatible with different voltage levels.Redundant power input for improved safety.
• Circular LED ring embedded with ProfiLEDs. Built-in multiple display modes for notification or navigation signals. Display modes can be selected according to specific scenarios via parameters or onboard Lua Scripting.
• CAN FD, real-time, and high transmission rate.
• Built-in 9-axis IMU. Through future firmware updates, HerePro can achieve tightly coupled DGNSS-INS-fusing solutions.
