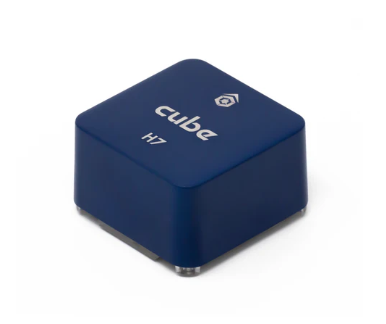

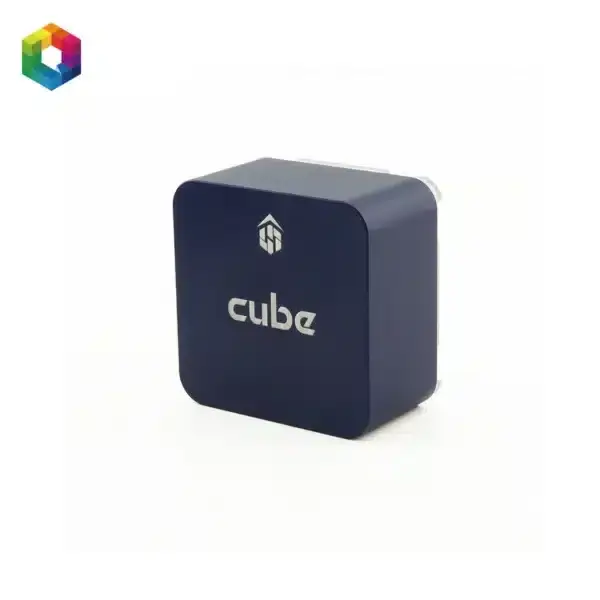

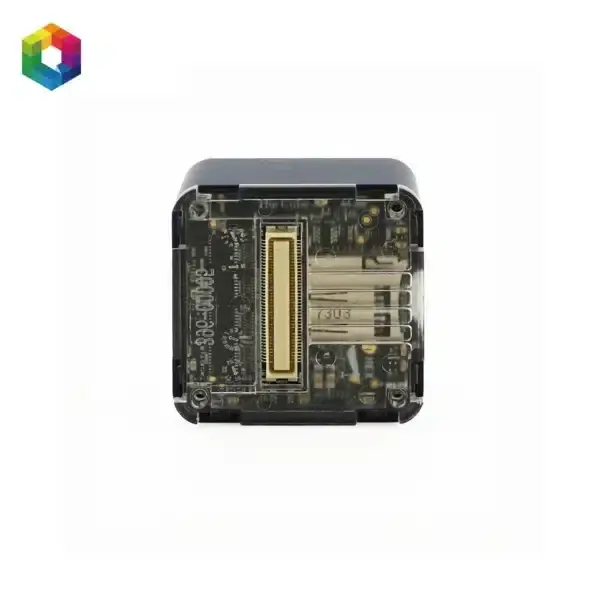

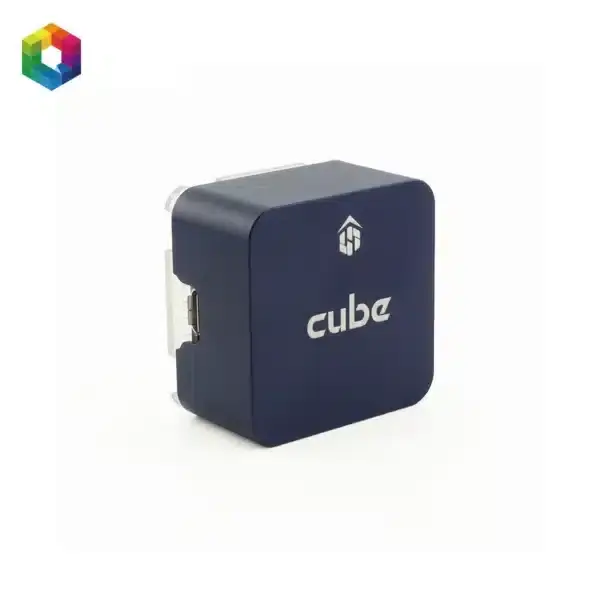

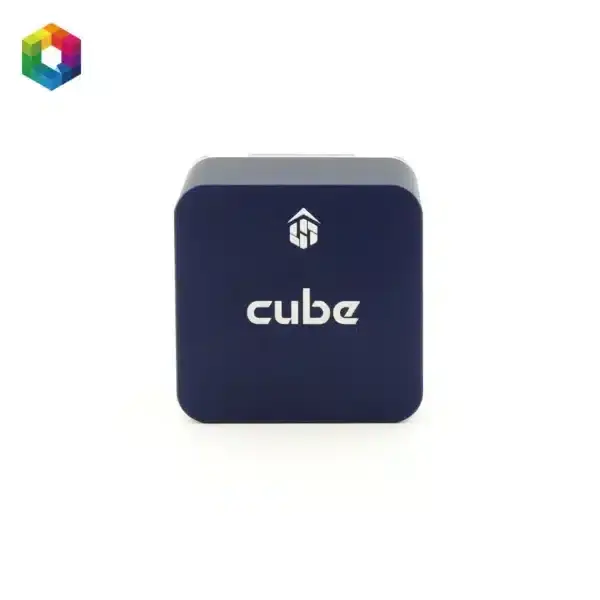

The Cube Blue

The Cube Blue is identical to the Cube Orange with the main difference being that it is manufactured in the USA. The Cube Blue is designed for operators that require a US-made flight controller option, such as government or military operators.

2,844.72 zł z VAT

This combination does not exist.

Add to cart

Regulamin
Wysyłka w ciągu 2-3 dni roboczych

Manufactured in USA

BlueH7 STM32H753; flash 2MB, RAM 1MB.
Orange+ STM32H757; flash 2MB, RAM 1MB.
On-board 16KB SPI FRAM
BlueH7, ICM 20649 30G integrated accelerometer / gyro.
MS5611 Barometer
All sensors connected via SPI.
Micro SD interfaces via SDIO.

*CubeBlue “manufactured in USA with US and allied components”

EOL And Substitution

MPU9250, LSM303D, L3GD20 are all EOL, As such, all new designs should use the H7 based boards CubeBlueH7 are 100% plug and play with all carrier boards that are compliant with our reference design dating back to 2014.

Vibration Damped IMU board version 2 (Cube BlueH7)

ICM20602
ICM 20948
MS5611 Barometer
All sensors connected via SPI.

I/O ports

14 PWM servo outputs (8 from IO, 6 from FMU).
R/C inputs for CPPM, Spektrum / DSM and S.Bus.
Analogue / PWM RSSI input.
S.Bus servo output.
5 general purpose serial ports, 2 with full flow control
Two I2C ports
One SPI port (un-buffered, for short cables only not recommended for use).
Two CAN Bus interface. (CAN FD for BlueH7 and Orange with CubePilot Logo)
3 Analogue inputs
High-powered piezo buzzer driver. (On expansion board)
High-power RGB LED. (I2C driver compatible Connected externally only)
Safety switch / LED.
