RFD868x TXMOD V2 Set

https://www.bzbuas.com/web/image/product.template/509/image_1920?unique=e4f6d9d

Long-range telemetry and communication system consisting of an RFD868x radio modem and a TXMOD V2 transmitter.
1,619.00 zł 1619.0 PLN 1,619.00 zł VAT Included
1,316.26 zł VAT Included
Contact to order

This combination does not exist.

Contact Us

Terms and Conditions
Shipping within 2-3 business days

RFD - is the flagship product of the Australian company RFDesign.

RFD jest systemem telemetrii i komunikacji na daleki zasięg.

System RFD składa się z modemów RFD, kompletu anten oraz przewodów niezbędnych do połączenia modułów z innymi systemami.

At the heart of each system are RFD modems, which are high-performance radio modems operating in the ISM (Industrial, Scientific and Medical) band. They are designed for long-range communications applications requiring best-in-class radio link performance. One of the modems is always part of the GCS (Ground Control Station), while the other is part of the project with which communication is required, such as an unmanned aerial vehicle.

For more on RFD modems, their differences and applications, see our authoritative RFD - system telemetrii i komunikacji dalekiego zasięgu.



RFD TXMOD 868x V2 module

Designed to work with control instruments that accept JR transmission modules. The device has a built-in WiFi module, which allows configuration and transmission of telemetry data to a computer or mobile device. JR modules are plugged into control apparatuses with JR sockets (Frsky Taranis, JR, Frsky Horus), establishing a connection between the apparatus and the unmanned aircraft transmitting PPM and Mavlink telemetry at the same time.

RFD868x_TXMOD_V2_Set




SPECIFICATION

For a full product description and specifications, please see the attached.


Technical specifications RFD868x

FREQUENCY RANGE

868-869MHz

OUTPUT POWER

1W(+30dBm), kontrolowana w krokach co 1dB

DATA RATE

12, 56, 64, 100, 125, 200, 224, 500 i 750 kbit/s (ustawiane przez użytkownika, domyślnie 65kbit)

UART DATA RATE

1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800, 1M baudów (ustawiane przez użytkownika, domyślnie 57600)

MOUNTING

3x śruby M2,5; 3x punkty lutownicze do pinów

NOMINAL POWER SUPPLY

+5V, (+3,5V min., +5,5V maks.), ~800mA przy maksymalnej mocy

OPERATING TEMPERATURE

od -40°C do +85°C (testowane od -73°C do +123°C)

DIMENSIONS

57 x 30 x 12,8mm

WEIGHT

14,5g


The modem is intended for system integrators who will integrate the modem into their own product designs and prototypes. It is the user's responsibility to comply with local radio transmitter regulations.

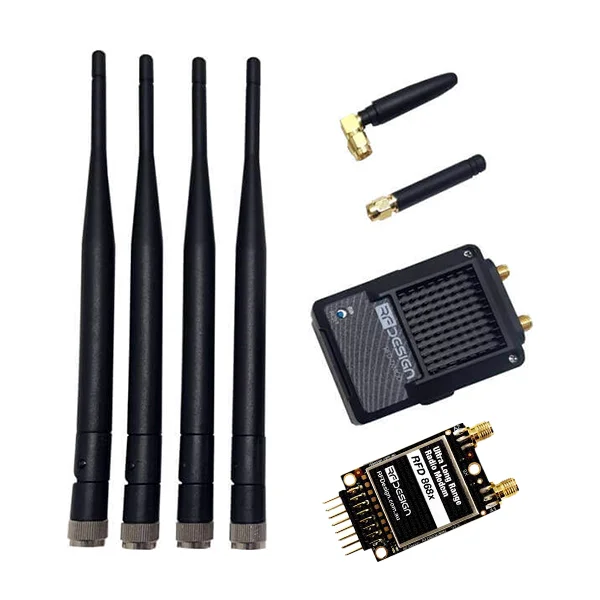

What's included in the RFD868x TXMOD V2 Set

  • 1 x RFD TXMOD V2
  • 1 x RFD868X Radio Modem software version v3.01 or newer
  • 1 x Antenna (868 MHz, 1/4 wave, monopoly 2.1 dBi
  • 1 x Antenna (868 MHz, right angle, quarter-wave, monopoly 2.1 dBi)
  • 4 x Antennas (868 MHz, half-wave, 2.1 dBi dipole)
