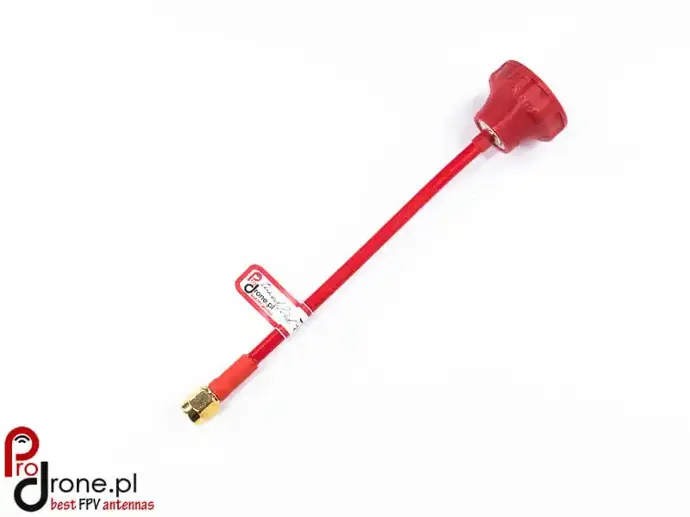

Antenna Pro Pagoda 2.1 Long goggles edition
The high-quality Pro Pagoda 2.1 Long goggles edition antenna ensures reliable and clear real-time transmission. Thanks to its precise design and high-quality materials, this antenna offers excellent performance, providing a smooth and stable connection even in challenging conditions.
Pro Pagoda 2.1 Long goggles edition antenna – a professional antenna made in Poland.
The antenna will perfectly fit goggles – with its longer cable, it will extend above your head. This allows for confident flying behind your back without the fear of losing the signal.
The Pagoda is an omnidirectional, universal antenna. It can work both as a transmitting and receiving antenna.
It features circular polarization – RHCP (right-hand circular polarization). The main goal of this antenna's design was to reduce its size while increasing its durability. The PRO Pagoda meets all these requirements. It offers high efficiency and a decent axial ratio of 1.3. Thanks to this good axial ratio, the antenna provides excellent attenuation of the oppositely polarized wave.
Main advantages of the Pagoda antenna:
- Very good radiation pattern
- Good axial ratio
- Exceptionally small and compact
- Durable
- Lightweight
- It can be used both as a transmitting and receiving antenna.
Why choose Prodrone antennas?
- 1. High-quality soldering connections
- 2. High-quality materials used in the antenna construction
- 3. High precision in antenna assembly, resulting in excellent performance and consistency
- 4. Each antenna is tested on a spectrum analyzer before shipment
Why is testing antennas on a spectrum analyzer so important?
The production of antennas for the 5.8GHz band requires very high precision, repeatability, and the use of minimal soldering material. Any small change in dimensions, geometry (we’re talking about accuracy of 0.1mm), or the amount of solder used can alter the antenna’s parameters.
Even with our antennas, maintaining high precision and repeatability, we achieve a tolerance range of 100-150MHz, which is why they require additional tuning.
By purchasing our antennas, you will know exactly how to use them to get the most out of them. Each antenna comes with a tag that includes basic parameters, informing you of the frequency range in which it should be used.
Antenna Pro Pagoda 2.1 Long goggles edition - Specification
Antenna length | ~140mm (+-5mm) |
Band | 5.8GHz |
Gain | 3 dBi |
vSWR coefficient | poniżej 1.2 |
Max output power | 40W |
Connector | SMA |
Polarization | RHCP |
