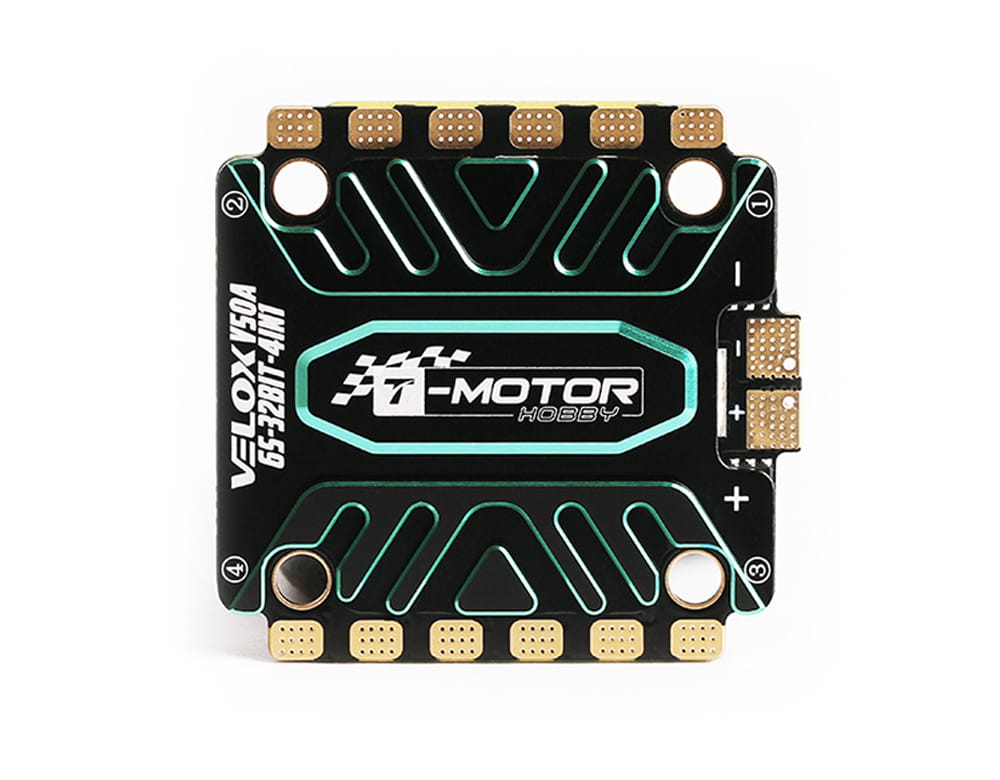

T-Motor VELOX V50A 3-6S 4in1 ESC
Designed for intense flying, it supports a voltage range from 3S to 6S, making it versatile for a variety of drone configurations. The V50A ESC features advanced firmware that provides smooth throttle response and precise control, enhancing the flying experience, especially in racing and freestyle applications. With a robust design and high-quality components, the Velox ESC provides resistance to electrical surges and thermal challenges, ensuring consistent performance and peace of mind on every flight.
Enjoy FPV flight with the new T-Motor VELOX V50A 3-6S 4in1 ESC
Suitable for FPV beginners electronic speed controller from T-Motor for FPV minidrones
Single-sided layout of power components bring stronger output - Adopting QN3109 1.5mΩ MOS, the over-current capability of V50A is increased by 18% compared with V45A.
The brand-new heat sink - Brings excellent heat dissipation performance which is increased by 10%.
One-body pad with excellent outlook and practicallity - Via in pad and Double-side welding improve fault tolerance.
T-Motor VELOX V50A 3-6S 4in1 ESC SPECIFICATION
Current | 50A |
Instantaneous current | 55A |
Input voltage | DC10V-27V (3-6S LiPo) |
Weight | 18.5g |
Dimensions | 45.4×43.8x8mm |
Mounting holes | 30.5×30.5, M3 |
Parameter tuning software | BLHeliSuite32 |
ESC software | TMOTOR T4 02 |
Connection diagram
Notice
- Each time ESC is connected to the system, input throttle signal will be detected automatically when powered on and execute corresponding throttle mode;
- When BLDC motor is connected to the system for the first time, or RC equipment is changed, throttle calibration is required. Please skip throttle range calibration when input signal is Dshot mode.
- Don't flash any other firmware to avoid ESC damage.
- Please repeatedly check if the polarity and connection sequence are correct before power up. Wrong connection would damage the equipment.
- Please power off first when pluging or making any connections.
- Please using within the range of ESC working current.
- Please use welding equipment with full power and choose right-size welding head. Try to avoid any equipments out of operation or short-circuits damage caused by wrong welding.
- VBAT is battery voltage, if connecting to other equipment, please make sure if the input voltage is within the range.
- CRT. (Current) is current detection output interface, can connect T-MOTOR F4, F7 or other FC can support current detection.
- If any questions, please contact T-MOTOR after-sales technical support.
T-Motor VELOX V50A 3-6S 4in1 ESC packing list
- 1x T-Motor Velox V50A 32Bit 4-In-1 ESC
- 1x Capacitor
- 1x XT60 14AWG 145mm Cable
- 1x 8P/10P Exchangeable Wiring Harness
- 1x 8P/8P Silicone Wiring Harness
- 5x Shock Absorbing Washer
- 2x T-Motor sticker
