The Cube Purple set
Small but crazy Cube Purple with cables and a mini carrier board!

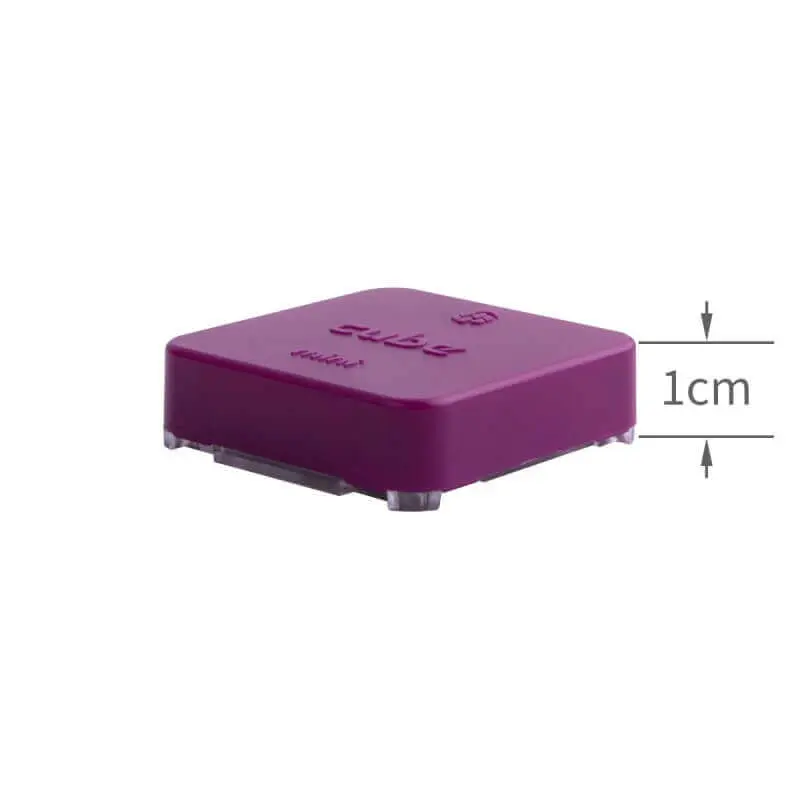

The set consisting of The Cube Purple (mini) autopilot and the Carrier Board Mini is an excellent controller adapted to ground vehicles such as cars, rovers, boats, etc. Thanks to its compact size, it can be easily integrated into any frame that has space great importance. With The Cube Purple Set you get an advanced, powerful and reliable controller with countless possibilities!
PRODUCT FEATURES
- modular structure
- independent IMU module, compass, barometer, accelerometer, magnetometer,

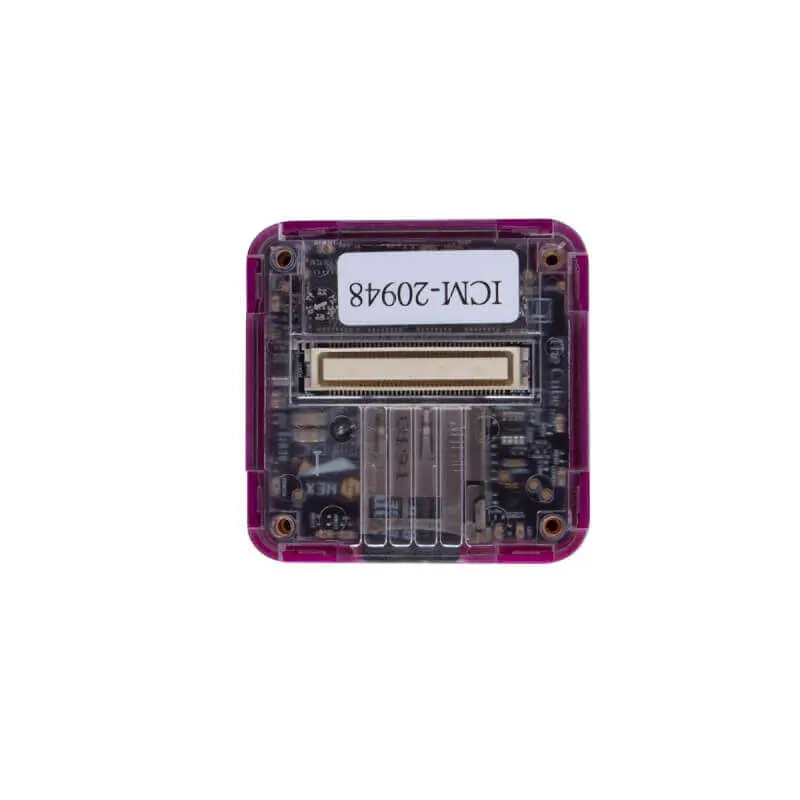

- standard DF17 connector.
SPECIFICATION
Pixhawk FMU – main controller
Processor | STM32F427 |
FLASH memory | 2MB |
RAM memory | RAM 256KiB |
CPU Clock speed | 168 MHz |
Built-in memory | 16KiB SPI FRAM |
Gyroscope / accelerometer | MPU9250 or ICM 20649 |
Barometer | MS5611 |
IMU connection | through SPI |
Interface | Micro SD through SDIO |
IMU module
Integrated accelerometer / magnetometer | LSM303D |
Gyroscope | L3GD20 |
Gyroscope / Accelerometer | MPU9250 or ICM 20xxx |
Barometer | MS5611 |
IMU connection | through SPI |
Mini Carrier Board
- Dual power input (power redundancy, automatic switching to another power supply in case of failure),
- power distribution (limit the current on each connector, avoiding overload when one device draws too much current),
- voltage protection (protection against or under voltage, the circuit will be turned off if the voltage exceeds the limit).
PACKAGE DETAIL
- cube with controller Pixhawk 2.1 – The Cube Purple,
- 1x Mini Carrier Board
- 1x microSD card (in the controller cube)
- 1x telemetry cable x2,
- 1x power cable,
- 1x I2C cable,
- 1x Buzzer cable,
- 1x micro USB cable,
- 1x GPS1 cable (with switch),
- 1x GPS2 cable,
- 1x CAN cable
