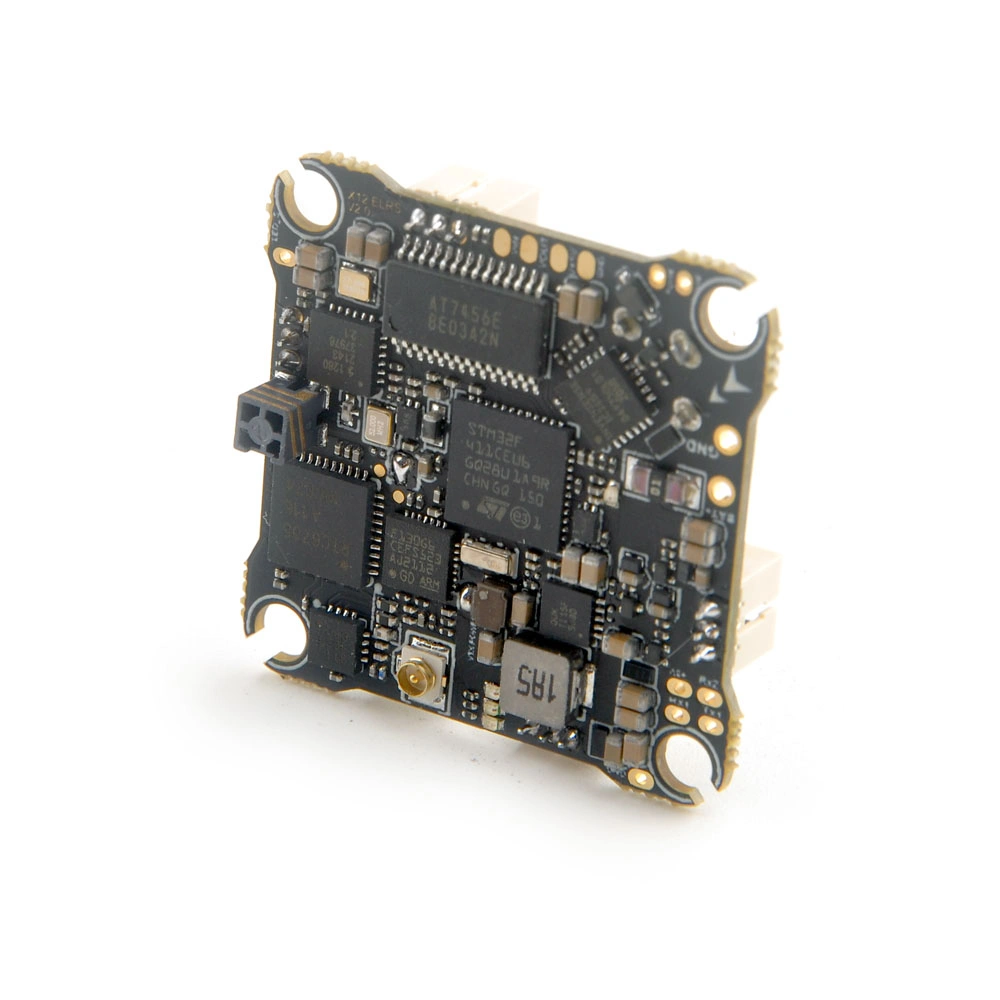

Happymodel X12 ELRS 5in1 AIO flight controller

Happymodel X12 ELRS 5in1 AIO flight controller

Upgrade your drone and use the AIO X12 ELRS, a versatile 5-in-1 AIO (All-In-One) flight controller that integrates ExpressLRS 2.4G V2.0, OpenVTX and 12A BLHeli_S ESC. The controller offers exceptional responsiveness and increased range with low latency, making it ideal for racing and complex maneuvers. The built-in receiver and VTX streamline installation, reducing weight and increasing reliability. Ideal for hobbyists and professionals alike, the X12 offers performance and precision in drone control.

284.55 zł z VAT

This combination does not exist.

Add to cart

Terms and Conditions
Shipping within 2-3 business days

1S or 2S Tiny Whoop? With the Happymodel X12 ELRS 5in1 AIO flight controller, you can do it both ways!

Deciding between a 1S or 2S Tiny Whoop? The Happymodel X12 ELRS 5in1 AIO flight controller lets you enjoy both options effortlessly! With its versatile design, you can switch between 1S for a smoother flight and 2S for enhanced power and agility. Equipped with ExpressLRS technology, the X12 ensures long-range, low-latency control, making your flying experience more responsive. Its compact size fits perfectly in your Tiny Whoop frame, providing a seamless setup.

Happymodel-X12-ELRS-5in1-AIO-flight-controller

Happymodel X12 ELRS 5in1 AIO flight controller Diagram

Happymodel-X12-ELRS-5in1-AIO-flight-controller

Happymodel X12 ELRS 5in1 AIO flight controller Specs

Betaflight software version	betaflight_4.4.0_STM32F411
VTX antenna	U.FL
Weight	5.1g
Size	30mm30mm8mm
Flight controller	X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 MCU: STM32F411CEU6 (100MHz, 512K FLASH) Sensor: ICM20689 or BMI270 or ICM42688P (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A (each) Blheli_S 4in1 ESC Built-in Betaflight OSD (SPI Control) Built-in 5.8G OpenVTX 0mW~400mW Built-in ExpressLRS 2.4G Built-in voltage meter sensor, voltage meter; scale 110 Built-in current meter sensor, current meter; scale 470
Onboard 4in1 ESC	Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware: Z_H_30_REV16_7.HEX Default protocol: DSHOT300 Support Bluejay firmware When use Blujay firmware with 48kHz, should set startup power to 1100/1200
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version: V2.0 RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn’t flash separately ExpressLRS firmware
Onboard 5.8g OPENVTX	Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels: 48ch Transmitting Power: 0/RCE/25mW/100mW/400mW Power supply: DC 5V Current (5V): <650mA (400mW) Antenna connector: U.FL

Happymodel-X12-ELRS-5in1-AIO-flight-controller

Package Happymodel X12 ELRS 5in1 AIO flight controller include

1* Happymodel X12 ELRS 5in1 AIO
1* silicone wire pigtail PH2.0
1* silicone wire camera cable
1* VTX dipole antenna with u.FL connector
1* set of shock absorbing washers
1* set of screws

1* set of stickers
