Enjoy performance at full speed!

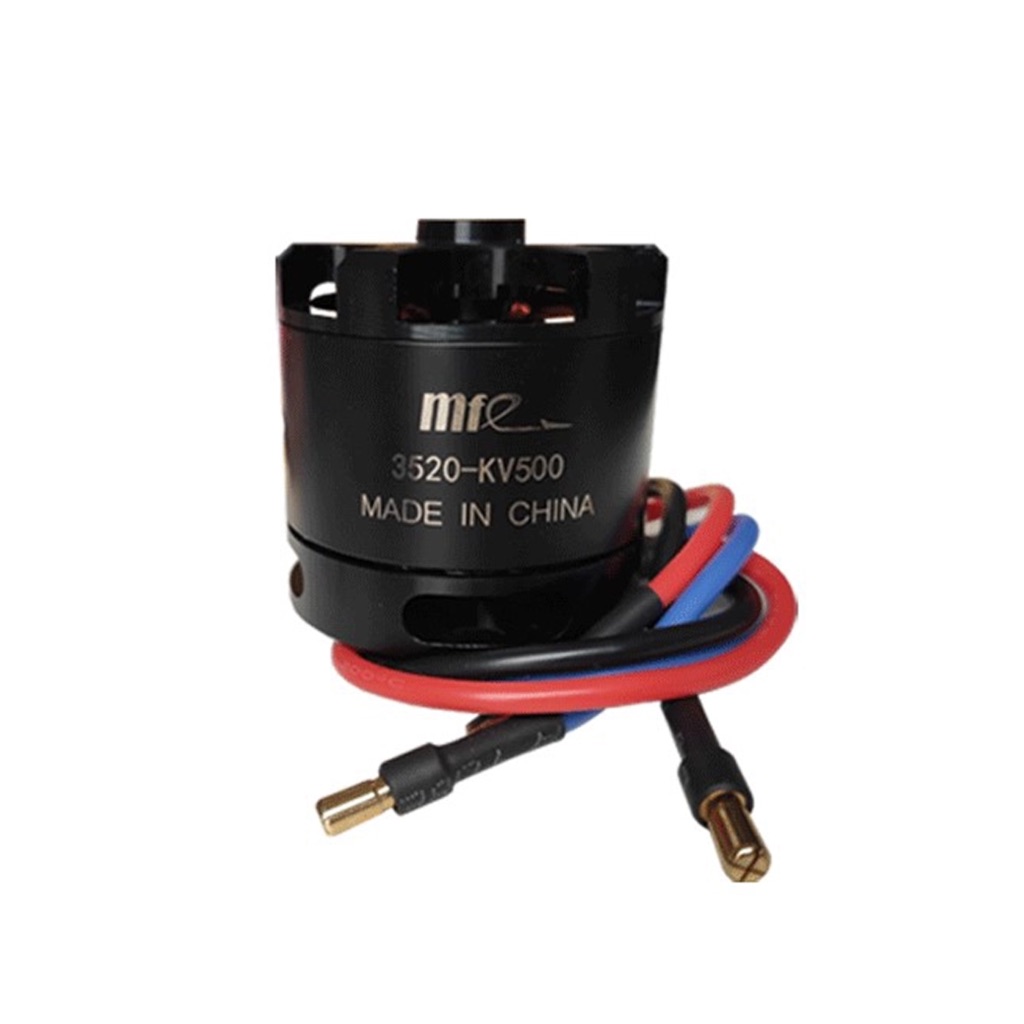

MakeFlyEasy X3520 is a series of motors that are ideal for fixed-wing aircraft (airplanes) as well as multi-rotors (drones). Thanks to the use of NMB bearings, X3520 motors are stable, quiet and have a long service life.
PRODUCT FEATURES
The X series of motors is created using CNC milling. The design not only provides great heat dissipation, but also significantly reduces the weight of the motor. The motor shafts are made of 420 stainless steel. After heat treatment, the shafts get high strength, excellent ductility and better resistance to bending and breaking. The upper and lower end caps are made of 6061-T6 aircraft aluminum alloy with high strength, hardness and high tensile strength, which ensures reliable motor performance.
The X series uses NMB mini bearings to ensure quiet and stable and long motor life. The manual winding is compact and neat, which provides low internal resistance, high efficiency, and effectively increases the maximum continuous power of each X motor
SPECIFICATION
PRODUCENT | Makeflyeasy |
MODEL | 3520-500 KV |
WAGA | 207g |
PRĄD JAŁOWY | 1.1A |
WARTOŚĆ KV SILNIKA | 500 |
OPÓR SILNIKA | 30mQ |
STAŁE NATĘŻENIE PRĄDU | 70A/30S |
MOC TRWAŁA | 1750W |
ŚREDNICA SILNIKA | 42,5 mm |
DŁUGOŚĆ WAŁU | 5mm |
DŁUGOŚĆ SILNIKA | 45mm |
DŁUGOŚĆ SILNIKA I WAŁU | 64mm |
LICZBA OBSŁUGIWANYCH OGNIW | 4-6S |
REKOMENDOWANY ESC | 60-80A |
REKOMENDOWANE ŚMIGŁO | 14 x 8,5 |
PACKAGE DETAIL
- motor
- propeller adapter
- propeller pressure washer
- set of screws
