PM02D 12S Power Module

https://www.bzbuas.com/web/image/product.template/497/image_1920?unique=e7df845

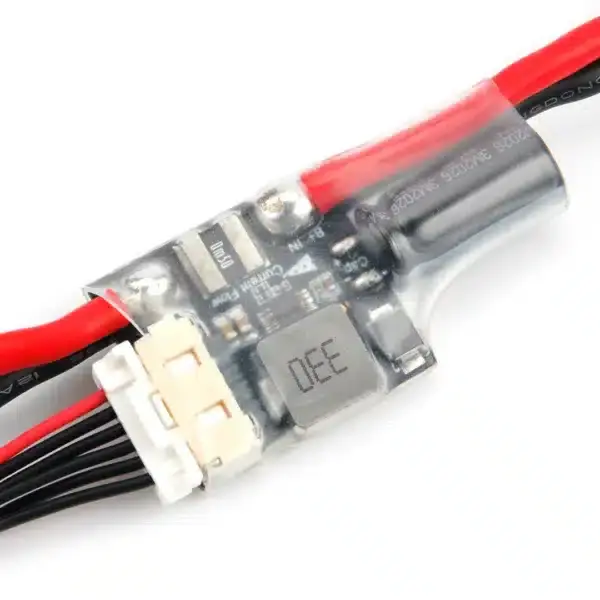

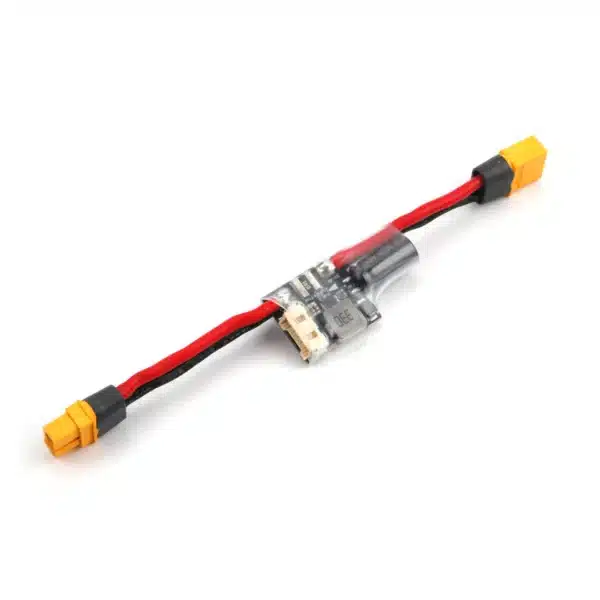

The PM02D power module is an essential component for the Pixhawk 5X and 6X flight controllers. With support for PX4 and Ardupilot, this module provides reliable power, accurate voltage and current monitoring, and a range of features.

153.66 zł 153.66 PLN VAT Excluded
153.66 zł VAT Excluded
Contact to order

This combination does not exist.

Contact Us

Terms and Conditions
Shipping within 2-3 business days

The PM02D power module – perfection in simplicity!


The PM02D HV version is supported by PX4. For Ardupilot, it is supported in version 4.4 and later.

This PM uses a digital I2C signal data output and is not compatible with flight controllers that use an analog PM, such as the Pixhawk 6C and Mini, Pixhawk4 and Mini, Pix32 v5, or Durandal flight controllers.

The PM02D power module is integral with CubePilot and Ardupilot

The PM02D power module provides regulated power to the Pixhawk® 5X and 6X from the battery, as well as measurements of current and voltage consumption, all through a 6-pin cable. The built-in switching regulator outputs 5.2 V and a maximum of 3 A from LiPo batteries up to 6S (LV) or 12S (HV). The power module is fully assembled, with XT60 connectors and wrapped in heat shrink tubing for protection against physical damage.

It is not intended for powering servos; for this purpose, use the ESC/BEC from your unmanned vehicle. The 2.00 mm pitch Wire-to-Board Molex CLIK-Mate connector is rated for 3.0 A per pin.



PM02D 12S power module - Specification

Input voltage

LV: 2S - 6S
HV: 2S - 12S

PCB Cont. Current Rating

60A

PCB Burst Current Rating

100A <60 sec

Max current sensing

LV: 164A
HV: 327A

Output

5.2V @ 3A max

Weight

20 g


The PM02D power module is equipped with XT60 connectors and 14 AWG silicone wires, rated for a continuous current of 30 A and a peak current of 60 A (<1 minute). If you require higher current, the connector type and wire gauge should be appropriately adjusted.

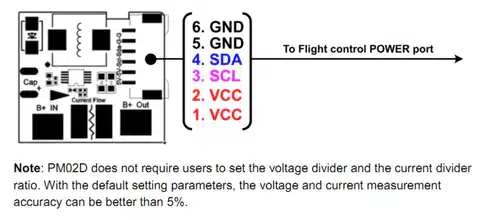

PIN MAP - PM02D power module



PX4 PARAMETER SETUP:

  • If you are using the PM02D HV power module version, you must set the SENS_EN_INA228



PM02D Power module - Package includes

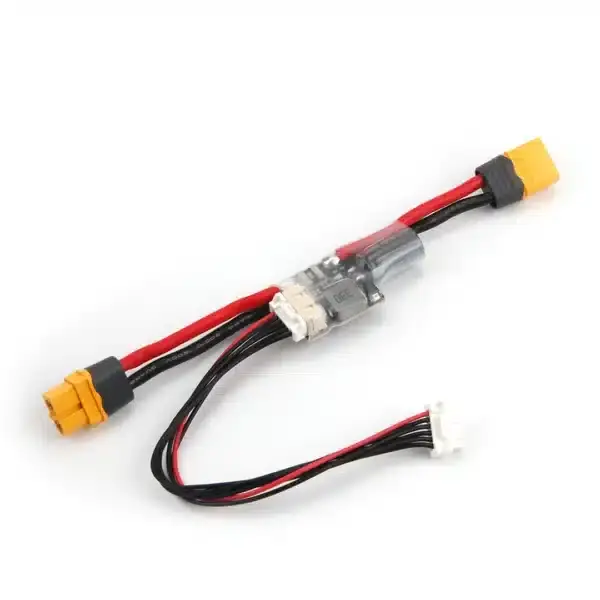

  • 1x power module PM02D
  • 1x cable 6pin 2.00mm
