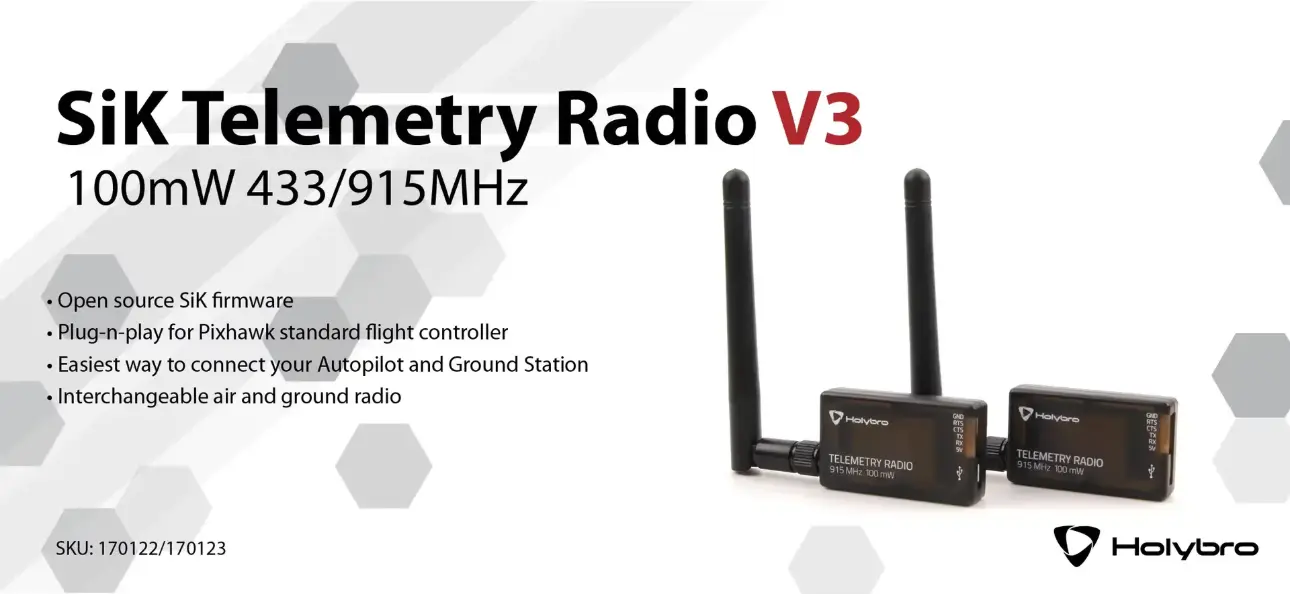

SiK Telemetry Radio V3 433MHz 100 mW

Holybro’s SiK Telemetry Radio V3 433MHz 100 mW is a versatile open-source radio platform, offering 300m+ range and easy plug-n-play compatibility with Pixhawk Standard and other flight controllers. With robust firmware designed for MAVLink integration, it simplifies telemetry connections between autopilots and ground stations. The radio operates at either 915Mhz or 433Mhz, so choose the appropriate model for your region. Additional features include adjustable output power, receive sensitivity, and a transparent serial link. It’s your reliable choice for efficient communication in the world of drones.

291.87 zł z VAT

This combination does not exist.

Add to cart

Regulamin
Wysyłka w ciągu 2-3 dni roboczych

Impressive range with SiK Telemetry Radio V3 433MHz 100 mW

This Holybro SiK 433MHz 100 mW telemetry radio is a small, lightweight and inexpensive open source radio module that typically allows a range of better than 300 meters “right out of the box” (range can be extended to several kilometers with a special antenna). This radio is compatible with all Pixhawk Standard and other plug-n-play flight controllers, providing the easiest way to set up a telemetry connection between the autopilot and the ground station. It uses open source software that is specifically designed to work well with the MAVLink protocol and integrate with Mission Planner, Ardupilot, QGroundControl and PX4 Autopilot. The radios can operate in either 915 MHz or 433 MHz mode, and you should buy the model appropriate for your country/region.

SiK-Telemetry-Radio-V3-433MHz-100-mW-3

PRODUCT FEATURES

Open source SIK firmware
Plug-n-play for standard Pixhawk flight controllers
Easiest way to combine autopilot and ground station
Radio powietrzne i naziemne można między sobą zamieniać
Micro-USB port (Type-C adapter cable included)
Złącze 6-pinowe JST-GH
Two-way communication via adaptive TDM UART interface
Transparent serial link
Technologia Frequency Hopping Spread Spectrum (FHSS) z konfigurowalnym cyklem pracy
Korekcja błędów koryguje do 25% błędów bitowych
Configurable with Mission Planner and APM Planner tools
FT230X/FT231 jest układem scalonym USB na BASIC UART

Specyfikacja SiK Telemetry Radio V3 433MHz 100 mW

Maksymalna moc wyjściowa	100 mW (regulowana)
Czułość odbioru	-117 dBm
Złącze antenowe	RP-SMA
Komunikacja	Dwukierunkowa poprzez adaptacyjny interfejs TDM UART
Konstrukcja protokołu	MAVLink
Wymiary	28 x 53 x 10.7mm (bez anten)
Masa	13.6g (bez anteny)
Masa anteny 433MHz	7.4g
Napięcie zasilania	5V DC (z USB lub złącza JST-GH)
Prąd roboczy	Nadawanie: 100 mA na 20dBm Odbiór: 25 mA
Napięcie interfejsu szeregowego	3.3 V UART

PACKAGE DETAIL

2x Moduł radiowy 433MHz 100 mW z anteną
1x kabel Micro-USB do USB-A
Micro-USB to Micro-USB OTG cable *1
Micro USB to Type C adapter
1x kabel JST-GH 6-pinowy do JST-GH 6-pinowy (do Pixhawk Standard FC)
1x kabel JST-GH 6-pinowy do Molex DF13 6-pinowy (do Pix32, Pixhawk 2.4.6, etc.)

Instrukcja:

Telemetry-Radio-V3-Quick-Start-Guide

GOOD ADVICE can be found at: https://ardupilot.org/copter/docs/common-configuring-a-telemetry-radio-using-mission-planner.html
